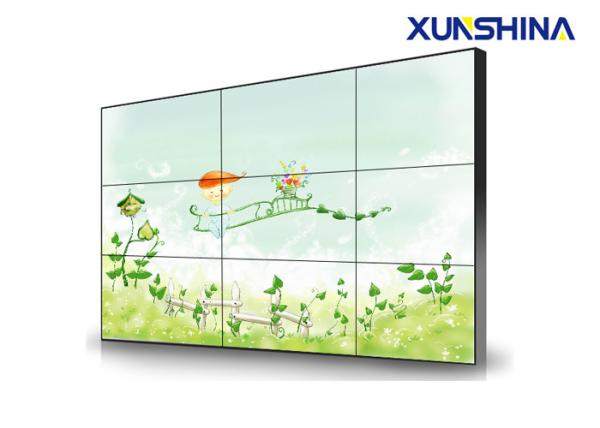

49" LG Screen Full HD LCD TV Wall With DP Loop Out , Industrial
design
Description of LCD Video Wall
1. DID splicing ultra-pressed seams only physical side of the
liquid crystal cell 3.5mm ,can truly seamless large screen then
display
2. Can be controlled via the big screen for each terminal server
software system independent implementation of content
playback,schedule management ,multi-screen control ,instant
messaging and so easy to operate.
3. Widely used in hydrielectic production scheduling ,military
command ,urban management ,mining safety,environment
monitoring,fire weather and other command and control system in the
field of security monitoring,video conferencing government
enterprise, and other places.
4. Reliable, trustable and durable, support uninterrupted operating
5. Support 4K signals
Specifications
| Model No. | XS460-4900HD-LNK |
LCD | Size | 49" LG panel |
| Resolution | 1920(H)x1080(V), support 4K signals |
| Pixel pitch | 0.5593(H)x0.5593(V) |
| Backlight | LED |
| Brightness(typical) | 450cd/m² |
| Contrast | 1300 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1073.8(H)x604(V) |
| Bezel | 3.5mm |
Interface | CVBS In / Out (BNC ) | 0/0 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DP In/Out | 1/1 |
| Control | IR remote control | No |
| RS-232 In/Out | 1/1 |
Physical parameter | Dimension | 1077.58mm(W) x607.8mm(H) x113.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 20Kg |
Power | Power consumption | ≦198W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| * design and specifications are subject to changes without prior
notice |
Applications:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference center, Talent market, Lottery
center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational
village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop, Hotel, Restaurant, travel agency,
Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model houses, Sales offices, the
entrance of elevator, etc.
