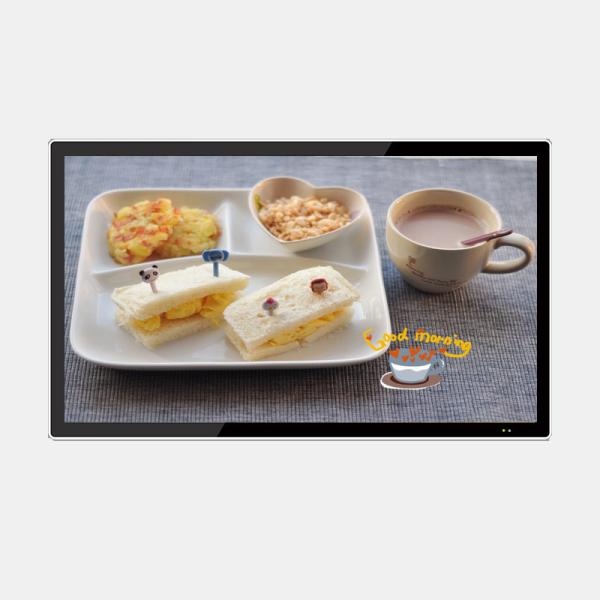

Android 75 Inch Wall Mounted LCD Digital Signage With Resolution
3840*2160
Product description
1. Multi-language menu, easy to operate.
2. Aluminum alloy frame is ultra-thin and ultra-light design, easy
to use, beautiful appearance.
3. Using the latest 3D digital decoding and image noise reduction
technology.
4. Automatic elimination of afterimage function to protect the
long-term use of the LCD screen.
Software features
1)Material management: audio, video, picture, Flash, PPT, Word,
Excel, PDF;
2)Program management: program production, editing, management,
export/import, program list/plan management;
3)Terminal management: terminal monitoring, fast release, time
synchronization, volume adjustment, download speed limit, power
on/off, remote update, touch management, etc.
4)System management: log management, view command execution status,
change password, user rights management, terminal authentication
management;
5)Other functions: user authority designation, terminal
authentication management, password modification
Specifications
| Name | Model No. | XS-G75B |
LCD screen | Size | 75inch |
| Resolution | 3840(H)x2160(V) |
| Display ratio | 16:9 |
| Contrast ratio | 1400:1 |
| Brightness | 350cd/㎡ |
| Viewing angle | H178º /V178º |
| Color depth | 16.7M |
| Response time | 8ms |
| Life span | 60,000hrs |
| Display area | 1649.6(W)x928mm(H) |
Hardware | Main chip | RKPX30 quad-core ARM Cortex-A35(default)
RK3288 quad-core ARM Cortex-A17 (optional) |
| Software | B/S structure multimedia information release system |
| RAM | 1GB(default), 2GB(optional) |
| External storage | Max support 64G B TF card |
| ROM | 8GB (optional) |
| Interface | 1*RJ45,2*USB |
Supported formats | OS | Andoid5.0 and above |
| Video decoding | Real-time video decoding, support MPEG-1, NPEG-2, MPEG-4 |
| Decoding resolution | Support up to 1080P@60fps/RK3288 Support up to 4K VP9/H265/H264
video decoding, 1080P multi-format decoding |
| Video coding | H.264,MVC.VP8 |
| Coding resolution | Max support1080P@60fps, RK3288 max support 4K |
| Picture format | Support JPG,JPEG,BMP,PNP,GIF |
| Play mode | Support loop playback, timing, insert and other playback modes |
| Text format | TXT(doc) |
| Video format | Support MPeg1, MPeg2, MPeg4, sp/AP GMC, XVID, H.263 |
| H.264. BP/MPHP, WMV7/8WMV9/VC1, BP/P/AP, VP6/8 |
| AVS, JPEG/MJPEG |
| Audio format | MP3, WMA, MP2,0GG, AAC, M4A, FLAC,APE,3GP,WAV |
| 3G/4G module | One PCIE slot, one USB interface |
| LVDS output | Support |
Additional functions | RTC | Support |
| Timer switch | Support |
| System Upgrade | Support USB upgrade |
Appearance | Panel | Ultra-high quality tempered glass (transmittance ≧98%) |
| Outer frame | High-strength aluminum alloy frame (tensile strength > 480 MPa) |
| Back shell | Cold rolled steel, black paint |
| Wall mounted mode | Horizontal screen, vertical screen (optional) |
| Working environment | Operating temperature | 0℃—50℃ |
| Storage temperature | -20℃—60℃ |
| Power supply | Operating voltage | AC100—240V |
| Rated power | ≤300W |
| Built-in speaker | 2x5W Stereo surround sound |
| Specifications may be changed without prior notice. |
Applications
1. Financial securities----Advertising machines placed at each
business outlet can display the characteristics and information
(pictures, animations) of each outlet.
2. Transportation----Airports, stations, piers and other hot spots
place advertising machines, can display local travel, accommodation
and other information.
3. Real estate property ---- Sales center, community, etc. place
advertising machines, can display real estate business information,
promotional information, sales, etc.;
4. Hotels ----- Each lobby or conference room, etc. place
advertising machines, can display the store's service information,
surrounding profiles and other information.
5. Commercial and residential buildings----Advertising machines
placed at the entrance or exit of office buildings can display the
featured companies and properties of this building.
6. Entertainment and fitness ---- Nightclubs, karaoke bars,
entertainment city, fitness venues, clubs, teahouses, etc., place
advertising machines, can display local introductions, promotional
information, featured introductions, etc.
7. Shopping malls----Shopping malls, commercial buildings,
supermarkets, chain stores, etc., place advertising machines, can
send local business introductions, recommended products, discount
information, etc.
