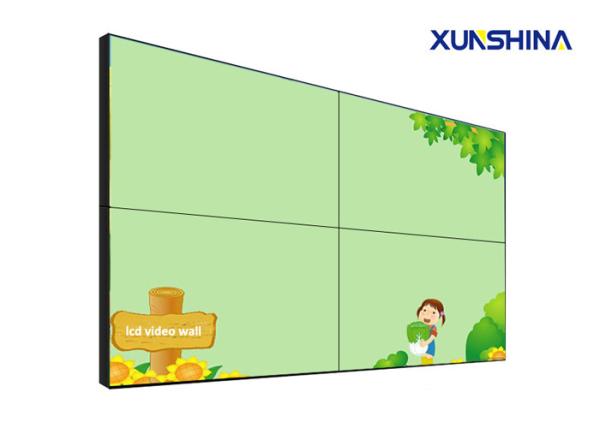

500 Nits 3.5mm Bezel 46 inch LCD Video Wall Display For Police
Station
Description of LCD Video Wall
1. Reliable quality and low maintenance
2. Super narrow bezel 3.5mm
3. High brightness and contrast make colors brilliant and bright,
as well as stable and clear image.
4. DID LCD panel makes the viewing angle up to 178°.
5. Support 7x24x265 non stop working
Specifications
| Model No. | XS460-4600HD-SNL3 |
LCD | Size | 46" Samsung panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.53025(H)x0.53025(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 3000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1018.08(H)×572.67(V) |
| Bezel | 3.5mm |
Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
Physical parameter | Dimension | 1021.98mm(W) x576.57mm(H) x121.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 18.6Kg |
Power | Power consumption | ≦190W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior
notice |
Applications:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference center, Talent market, Lottery
center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational
village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop, Hotel, Restaurant, travel agency,
Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model houses, Sales offices, the
entrance of elevator, etc.
