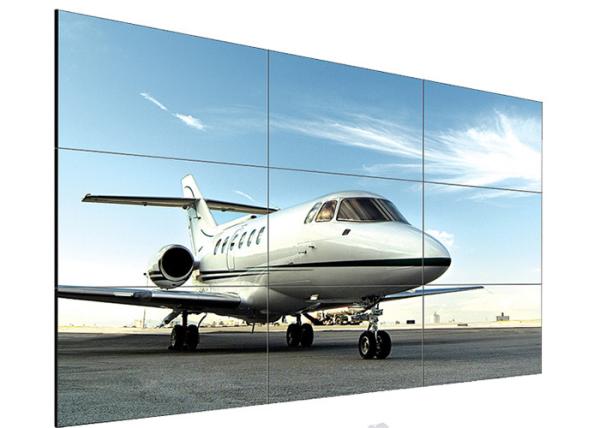

1.7mm Bezel 46" Seamless Video Wall System For Movie Advertising
Advantages of LCD Video Wall
1. High reliable components and high heat dissipation body design,
support 7*24*365 hours working
2. Full HD display, native resolution1920x1080
3. The ultra thin and lightweighted design makes it easy to
transport and install
4. High performance and high quality make it cost less.
5. Flat-fell seam between the non-display area is only 1.7mm
Specifications
| Model No. | XS-S46TL20 |
LCD | Size | 46" Samsung panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.53025(H)x0.53025(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 4000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1018.08(H)×572.67(V) |
| Bezel | 1.7mm |
Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
Physical parameter | Dimension | 1020.02(W)x574.61(H)x121.7(D)mm |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 18.6Kg |
Power | Power consumption | ≦190W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior
notice |
Applications:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference center, Talent market, Lottery
center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational
village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop, Hotel, Restaurant, travel agency,
Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model houses, Sales offices, the
entrance of elevator, etc.
