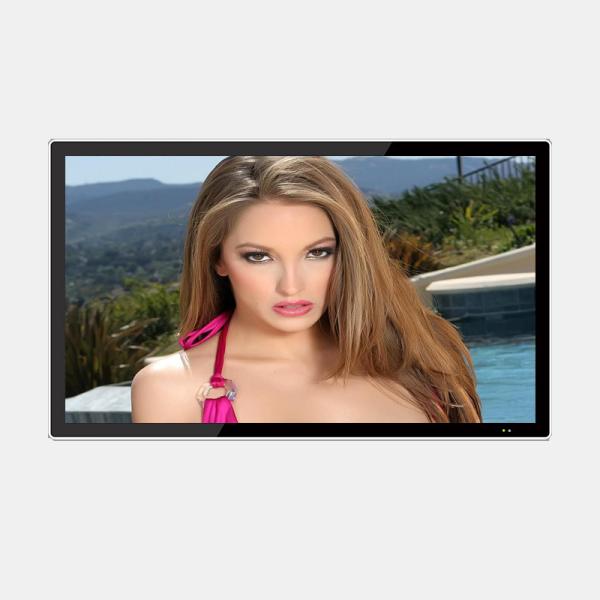

Large Size 4K 86 inch Android Network Digital Signage With Free
Software
Product description
1. Updating programs (video, pictures. texts,PPT etc.) through the
internet supported.
2. Real time management and controlling,browser,breakpoint upload
and download,multi-mode up
3. Max support 1080P decoding and all LVDS signal LCD screens.
4. Multiple functions: Support horizontal and vertical display,
support split screen, scrolling subtitles, timer switch, USB data
import functions, etc.
Software description
1. The system adopts distributed point-to-point information
publishing mechanism, and each point can play different
notification screens. According to different placement places,
points can be specified at will, and the operation is simple.
2. It can be operated by management software, remote standby or
wake-up, restart, etc.
3. It can remotely monitor the terminal network connection status
and monitor the dynamic playback screen being played in real time,
which is convenient for user management without having to go to the
display terminal to view the effect after the operation.
Specifications
| Name | Model No. | XS-G86B |
LCD screen | Size | 86inch |
| Resolution | 3840(H)x2160(V) |
| Display ratio | 16:9 |
| Contrast ratio | 1400:1 |
| Brightness | 400cd/㎡ |
| Viewing angle | H178º /V178º |
| Color depth | 16.7M |
| Response time | 8ms |
| Life span | 60,000hrs |
| Display area | 1895(W)x1066mm(H) |
Hardware | Main chip | RKPX30 quad-core ARM Cortex-A35(default)
RK3288 quad-core ARM Cortex-A17 (optional) |
| Software | B/S structure multimedia information release system |
| RAM | 1GB(default), 2GB(optional) |
| External storage | Max support 64G B TF card |
| ROM | 8GB (optional) |
| Interface | 1*RJ45,2*USB |
Supported formats | OS | Andoid5.0 and above |
| Video decoding | Real-time video decoding, support MPEG-1, NPEG-2, MPEG-4 |
| Decoding resolution | Support up to 1080P@60fps/RK3288 Support up to 4K VP9/H265/H264
video decoding, 1080P multi-format decoding |
| Video coding | H.264,MVC.VP8 |
| Coding resolution | Max support1080P@60fps, RK3288 max support 4K |
| Picture format | Support JPG,JPEG,BMP,PNP,GIF |
| Play mode | Support loop playback, timing, insert and other playback modes |
| Text format | TXT(doc) |
| Video format | Support MPeg1, MPeg2, MPeg4, sp/AP GMC, XVID, H.263 |
| H.264. BP/MPHP, WMV7/8WMV9/VC1, BP/P/AP, VP6/8 |
| AVS, JPEG/MJPEG |
| Audio format | MP3, WMA, MP2,0GG, AAC, M4A, FLAC,APE,3GP,WAV |
| 3G/4G module | One PCIE slot, one USB interface |
| LVDS output | Support |
Additional functions | RTC | Support |
| Timer switch | Support |
| System Upgrade | Support USB upgrade |
Appearance | Panel | Ultra-high quality tempered glass (transmittance ≧98%) |
| Outer frame | High-strength aluminum alloy frame (tensile strength > 480 MPa) |
| Back shell | Cold rolled steel, black paint |
| Wall mounted mode | Horizontal screen, vertical screen (optional) |
| Working environment | Operating temperature | 0℃—50℃ |
| Storage temperature | -20℃—60℃ |
| Power supply | Operating voltage | AC100—240V |
| Rated power | ≤400W |
| Built-in speaker | 2x5W Stereo surround sound |
| Specifications may be changed without prior notice. |
Applications
> Financial Organizations: Banks, negotiable securities, funds, insurance companies,
pawnshops;
> Non-profit Organizations: Telecommunications, post offices, hospital, schools;
> Public Places: subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers;
> Real Estate Property: Apartments, villas, offices, commercial buildings, model
rooms
