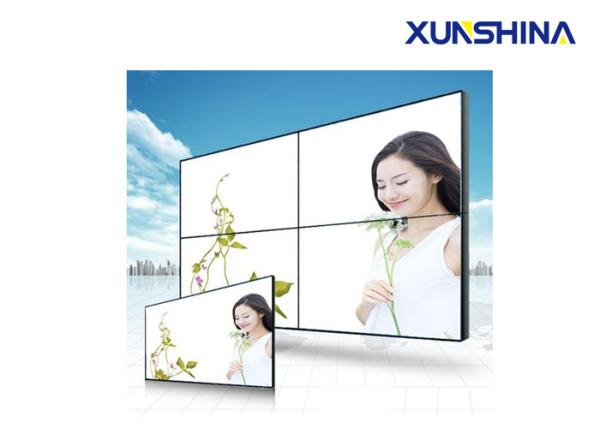

Samsung Panel 46 inch Ultra Narrow Bezel Video Wall For Department
Store
Description of LCD Video Wall
1. RS232 remote control, each unit can be looped out;
2. Continuous operating24 hours a day;
3. Easy to operate, flexibly operate the system with the Foretell
large screen control software;
4. Open underlying communication protocol, users can flexibly use
third-party control system or prepare software to construct large
screen
Specifications
| Model No. | XS460-4600HD-SNL3 |
LCD | Size | 46" Samsung panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.53025(H)x0.53025(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 3000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1018.08(H)×572.67(V) |
| Bezel | 3.5mm |
Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
Physical parameter | Dimension | 1021.98mm(W) x576.57mm(H) x121.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 18.6Kg |
Power | Power consumption | ≦190W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior
notice |
Applications:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference center, Talent market, Lottery
center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational
village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop, Hotel, Restaurant, travel agency,
Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model houses, Sales offices, the
entrance of elevator, etc.
