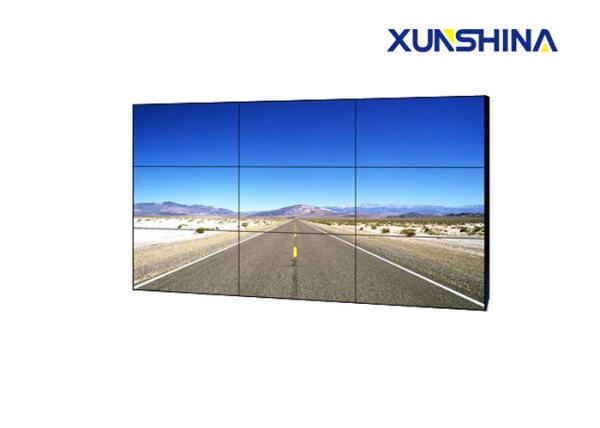

Samsung Narrow Bezel Video Wall 1920*1080P HDMI Video Wall Controller

Ask Lasest Price
Brand Name :	XUNSHINA
Model Number :	XS460-4600HD-SNL3
Certification :	CE/ROHS/FCC
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	3000pcs per month
Delivery Time :	3-7 working days after payment

Add to Cart

Product Details
Company Profile

Samsung Narrow Bezel Video Wall 1920*1080P HDMI Video Wall Controller

Samsung Narrow Bezel Video Wall 1920*1080P HDMI Video Wall Controller

Description of lcd video wall
1.Beautiful wall structure design, be convenient for installation and maintenance
2.Service life of this product can up to 60000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.

3.Widely used in hydrielectic production scheduling ,military command ,urban management ,mining safety,environment monitoring,fire weather and other command and control system in the field of security monitoring,video conferencing government enterprise ,finacial securities ,airports ,subways,shopping malls,hotels,nightclubs ,bars and other communication information dissemination of information and advertising display,large -screen playback ,and other places.

Specifications

Model No.		XS460-4600HD-SNL3
LCD	Size	46" Samsung panel
	Resolution	1920(H)x1080(V)
	Pixel pitch	0.53025(H)x0.53025(V)
	Backlight	LED
	Brightness(typical)	500cd/m²
	Contrast	3000 : 1
	Viewing angel (H/V)	178° / 178°
	Color depth	16.7M
	Response time	<8ms
	Display area	1018.08(H)×572.67(V)
	Bezel	3.5mm
Interface	CVBS In / Out (BNC )	1/1
	VGA In / Out	1/0
	DVI In / Out	1/0
	HDMI In/Out	1/0
	DEBUG(USB)	1/0
Control	IR remote control	Yes
Control	RS-232 In/Out	1/2
Physical parameter	Dimension	1021.98mm(W) x576.57mm(H) x121.7mm(D)
	Frame color	Black
	Frame material	Metal
	Net weight	18.6Kg
Power	Power consumption	≦190W
	Standby	<1W
	Power supply	AC 100V-240V, 50/60Hz,Universal,±10%
Environment	Operating humidity	20-90% RH(no condensation)
	Storage humidity	10-90% RH (no condensation)
	Operating temperature	0 ~ 50° C / 32 ~ 122° F
	Storage temperature	-20 ~ 60° C / -4 ~ 140° F
Accessory	Standard accessories	Power cable, User manual, Warranty card, Quality certificate
Accessory	Optional accessories	Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Applications

1.Education and Conference System
2.Safety Monitoring System of Mining and Energy Industry
3.Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4.Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5.Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6.Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
