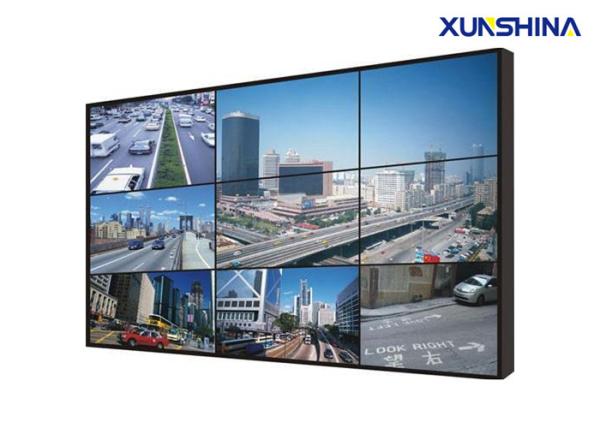

3.5mm Bezel 49 inch Ultra Narrow Bezel Video Wall for Meeting Room
Adopt industrial grade LED backlight panel, support 7x24 continuous
working, feature with full HD, high definition, high stability,
long life time, ultra thin design, no radiation, low consumption,
etc.
Features
1) Durable, stable and reliable
2) Video Wall support 7*24*365 hours unterruppted working
3) Bezel is only 3.5mm
4) Resolution1920x1080
5) Brightness 450cd/㎡
6) LED backlight video wall
7) Wide viewing angle
8) Metal casing, surface coating
9) Auto color calibration
10) Intelligent automatic geometric adjustment
Specifications
| Model No. | XS460-4900HD-LNL |
LCD | Size | 47" LG panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.5593(H)x0.5593(V) |
| Backlight | LED |
| Brightness(typical) | 450cd/m² |
| Contrast | 1300 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1073.8(H)x604(V) |
| Bezel | 3.5mm |
Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
Physical parameter | Dimension | 1077.58mm(W) x607.8mm(H) x113.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 20Kg |
Power | Power consumption | ≦198W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
Accessory | Standard accessories | Power cable, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior
notice |
Display Mode
Video Wall Applications
1. Subway, Airport, Bookshop, Exhibition, Gymnasium, Museum,
Conference center, Talent market, Lottery center, etc.
2. Movie theatre, Fitness center, Vacational village, KTV bar,
Internet bar, Beauty salon, Golf course, etc.
3. Banks, Insurance company, etc.
Our Services
Pre-sales service :
Our team design and make solutions based on different requirements
from different customers.
After-sales service:
1. We provide customer service through Skype, phone or email,
supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve
real time service.
Installation Service:
1. We provide detailed CAD drawing to customers for preparing metal
structure.
2. Onsite service can be provided for guide installation and
training.
