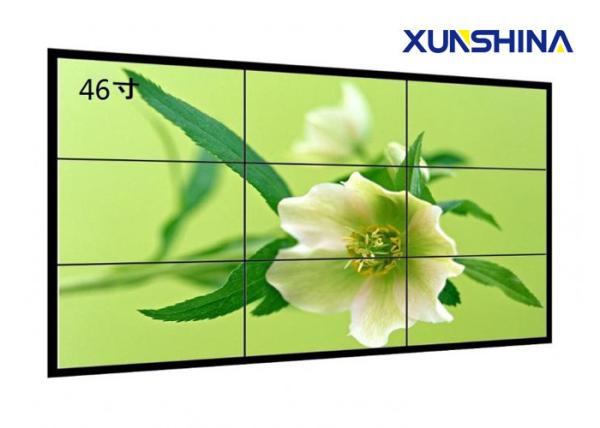

Ultra Bezel Seamless 4K Samsung Video Wall Displays 3x3 46 inch
Description of LCD Video Wall
1) Diversification of the display mode, support any combination of the display
2) Ultra narrow frame design 3.5mm
3) Continuous working for 7 x 24 hours
4) Support 4K resolution signals
5) Through RS232 serial port to realize the remote control function
6) Support error and compensation function of video wall pictures
Specifications
| Model No. | XS460-4600HD-SNK3 |
| LCD | Size | 46" Samsung panel |
| Resolution | 1920(H)x1080(V) support 4K signals |
| Pixel pitch | 0.53025(H)x0.53025(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 3000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1018.08(H)×572.67(V) |
| Bezel | 3.5mm |
| interface | CVBS In / Out (BNC ) | 0/0 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DP In/Out | 1/1 |
| control | IR remote control | NO |
| RS-232 In/Out | 1/2 |
| Physical parameter | Dimension | 1021.98mm(W) x576.57mm(H) x121.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 18.6Kg |
| Power | Power consumption | ≦190W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
| Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
| Accessory | Standard accessories | Power cable(1.8m, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior
notice |
Applications
1. Education and Conference System
2. Safety Monitoring System of Mining and Energy Industry
3. Commercial Industry
Used in the display terminal of commercial industry, such as
advertising, media, product presentations
4. Financial Industry
Used in the information display terminal of financial industry,
such as stock and security market. .
5. Transportation Industry
Used in the information display terminal of transportation
industry, such as airports, ports, metro, highway.
6. Management and Control System
Used in the display terminal of management and control system such
as fire-fighting, meteorology, maritime, food prevention,
transportation hub
