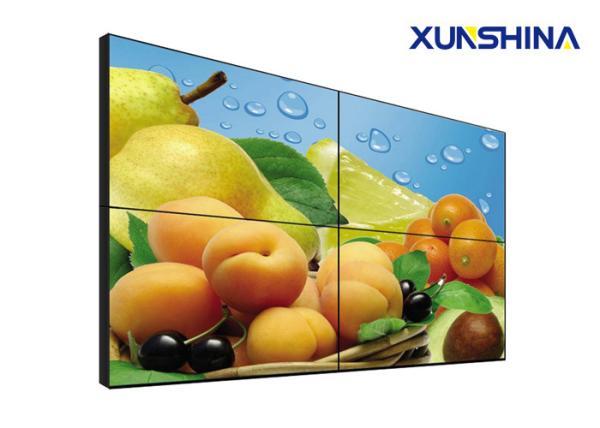

49 inch Nearly Seamless Video Wall with LG Panel for Indoor Use
Adopt industrial grade LED backlight panel, support 7x24 continuous
working, feature with full HD, high definition, high stability,
long life time, ultra thin design, no radiation, low consumption,
etc.
Features
1) Industrial design, durable, stable and reliable
2) High reliable components and high heat dissipation body design,
support 7*24*365 hours working
3) Ultra narrow frame, bezel is only 3.5mm
4) Full HD display, native resolution1920x1080
5) Brightness 450cd/㎡
6) LED backlight
7) Wide viewing angle H178°/V178°
8) Metal casing, surface coating, black color
9) Metal back plate and carry handle
10) Auto color calibration
11) Intelligent automatic geometric adjustment
Specifications
| Model No. | XS460-4900HD-LNL |
| LCD | Size | 49" LG panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.5593(H)x0.5593V) |
| Backlight | LED |
| Brightness(typical) | 450cd/m² |
| Contrast | 1230 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1073.8(H)x604(V) |
| Bezel | 3.5mm |
| interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
| Physical parameter | Dimension | 1077.58mm(W) x607.8mm(H) x113.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 20Kg |
| Power | Power consumption | ≦198W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
| Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
| Accessory | Standard accessories | Power cable(1.8m, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior
notice |
Applications
Our Services
Pre-sales service:
Our team design and make solutions based on different requirements
from different customers.
After-sales service:
1. We provide customer service through Skype, phone or email,
supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve
real time service.
Installation Service:
1. We provide detailed CAD drawing to customers for preparing metal
structure.
2. Onsite service can be provided for guide installation and
training.
