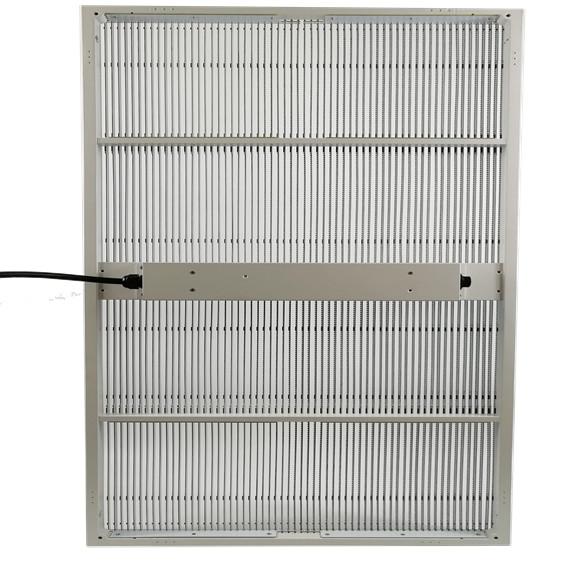

Full Color P3-7 Transparent LED Screen With Side Lighting Cabinet Design

P3-7 Side Lighting Transparent LED Displays

P3-7 The full-color LED display is a new generation of LED display products. It can ensure the color richness and display details of the dynamic picture without affecting the lighting and aesthetics of the installation position.

It is designed with a cabinet size of 1000X500mm, and can be spliced out of any shape in any direction and any size. At the same time, the standard display size design makes the displayed picture uncompressed, clear and real, and presents perfect visual effects.

Specifications

P3-7 side lighting
Pixel pitch(mm)	3mm-7mm
LED	SMD1921
Driving IC	MBI,1/8 scanning
Pixel density	32768PX／m²
Driving method	Constant current driving IC
Brightness(cd/m²)	5500cd/m²
Transparency	70%
Grey level	65536(15bit)
Refresh rate(hz)	≥1920hz
PCB board	6-level,2.0 depth, Raw material
Connector	3M Gold plating
IP grade	IP30
Brightness adjustment	256 levels
Viewing angle	H/V 120°/120°
Viewing distance(m)	4m-12m
Power supply	Input voltage DC5-3.5V/AC85-240V
Ave. Power consumption(w)	Ave. 340W/m²
Peak power consumption	Max 800W/m²
Cabinet size (mm)	1000mm500mm75mm
Weight (kg/ m²)	12kg
Installation method	Hoisting, fixed installation
Maintenance method	Front maintenance
Span life(h)	≥100000hrs
Environment	Temperature:-10℃～+40℃；Humidity:15%～90%RH

Installation

Full Color P3-7 Transparent LED Screen With Side Lighting Cabinet Design
