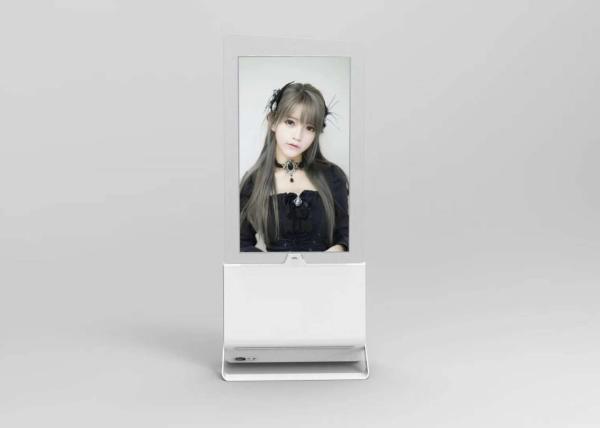

55” Floor standing double-sided digital signage EG8
Product Model
XS-55EG8
Product Description
The hanging double-sided digital signage is designed with
ALL-IN-Glass, and two panels are embedded inside the
high-transparent tempered glass. The system supports Android system
or windows system, ultra-thin glass shell, no color distortion at
any viewing angle, and accurate color reproduction.
Application
Banks, airports, high-end retail, exhibitions, star-rated hotels,
office buildings, schools, institutions, tourist attractions,
automobile 4S shops, etc.
Main Features
1. Double-sided display same or different display
2. High-definition picture display (the picture is clear and the
perfect real details are reproduced);
3. Ultra-thin design;
4. Remote control via WIFI or LAN;
5. Split screen displays videos, pictures, and text at the same
time;
6. Wide viewing angle;
7. Supports time-sharing to define program playback and device
switch-on time;
8. 2cm light and thin thickness of surface steel, ultra thin and
light weight;
Specifications
| Model No. | XS-55EG8 |
| Panel | |
| Size | 55"(1387mm) |
| Type | TFT-LCD+LED backlight |
| Ratio | 16:9 |
| Resolution | 3480*2160 |
| Viewing angle | L/R178 U/D178 |
| Brightness | 420cd/m2 |
| Hardware | |
| CPU | Quad core Cortex-A17 RK 3288 processor 1.8GHz |
| Memory | RAM 2GB |
| Storage | ROM 8GB |
| OS | Android 5.1 |
| Screen | 55inch LCD display, resolution 3840*2160@60HZ |
| Shell material | Tempered glass housing |
| Main control board interface |
| Power | 1 external socket |
| HDMI output | 1, support HDMI2.0@60Hz 4K*2K screen |
| Network | 1 *RJ45 10M / 100M Adaptive Ethernet port |
| HDMI input | 1 |
| Earphone/MIC | 1, External headphone audio output socket (GB: GND, MIC, R, L) |
| WIFI | 1*WIFI, Support 2.4G/5G WIFI, Support Wi-Fi 802.11b/g/n protocol |
| 3G/4G(optional) | Scalable 1 channel 3G (WCDMA, EVDO, CDMA, GSM) / 4G (LTE-TDD /
LTE-FDD / TD-SCDMA / EDGE / GPRS / GSM) signal |
| SD card | Maximum expansion to 64GB TF card |
| USB2.0 | 2, USB HOST |
| General parameters |
| Video format | Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc |
| Audio format | Support MP3, WMA, OGG |
| Picture format | Support BMP, JPEG, PNG, GIF |
| Working temperature | -10℃ - +50℃ |
| Working humidity | 10 ～ 90% RH, no condensation |
| Power supply | AC100-240V 50/60Hz |
| Power consumption | ≦175W |
| Standby consumption | 0.5W |
| Dimension | 2116*878*519mm |
| Weight | N.W.:52KG G.W.:65KG |
| Mounting brackets | Transparent double-sided display, base (base front cover, base back
cover, base bracket, glass fixing plate, motherboard bracket) |
| Accessory | Remote control, manual, power cord, installation guide |
Dimension
